Chart Editor

Overview

OrgChart allows Administrators and Read/Write users to customize their charts of export using the Chart Editor in Workbench.

Charts customized with the Chart Editor in Workbench, can be saved and accessed later, or exported directly from Workbench.

Note

Modifications made with the Chart Editor are manual in nature. Whenever possible, use Box Styles and Rules (configured in View Manager) to automatically drive the presentation of the OrgChart.

Accessing the Chart Editor

Click on the 5_2_Mode_Small.png icon to open the Mode Switcher. Then, click on the Workbench button.

The Workbench dialog is displayed.


Open a recently open document, open an existing document, create a blank chart, or use the Chart Builder to enter the Workbench.

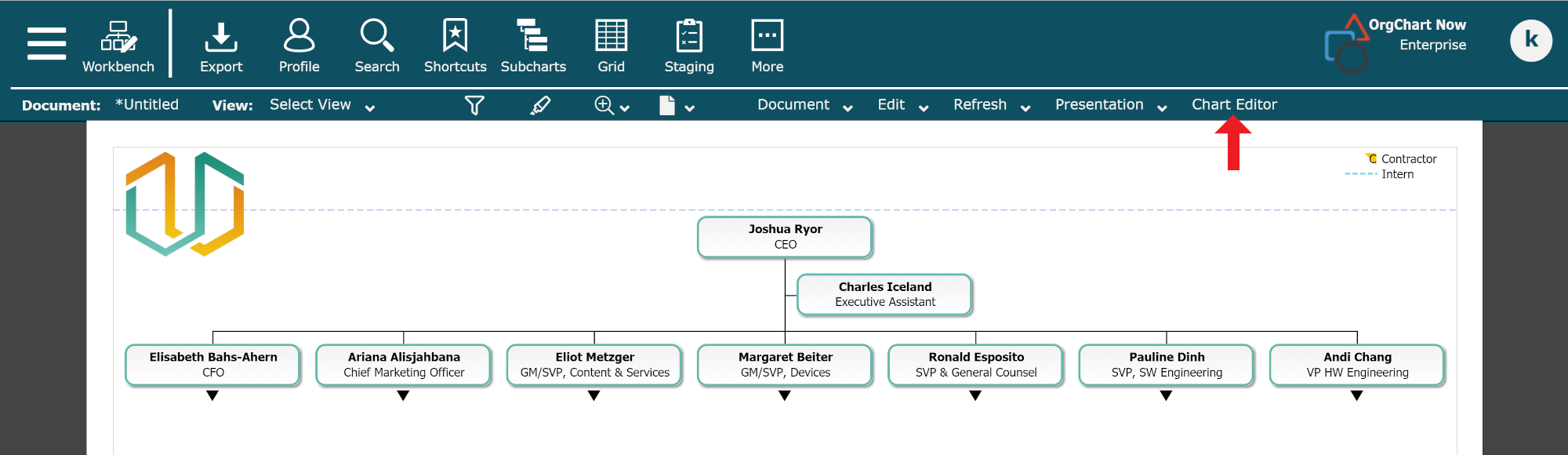

Click on the Chart Editor button.


Chart Editor Options

The Chart Editor is displayed on the right-hand side of the screen, and is divided into 10 sections, each offering different editing options.

Optionally, click on the 5_2_Workbench_Arrow_Right.png to the left of a section heading to expand it, or click on the 5_2_Workbench_Arrow_Down.png button to hide the section's contents.

Tools

Click to select a a box.


Click to enable the pan function. Click and drag to view different sections of the chart.


Delete a selected box.


Move a selected box.


Add a box beneath the selected box.

,


Add an assistant box reporting to the selected box.

Layout

Change the branch style for the branch of the selected box.


Define the order in which employee records are displayed on the chart. You can apply Box Sort to the entire chart, the current subchart, or the selected boxes.


Optimize branch styles to best use the available space. You can optimize the branch styles on the current subchart, or all subcharts.


Define the spacing between the selected boxes.


Center the chart horizontally on the current subchart.


Center the chart vertically on the current subchart.


Position the chart to the top (just below the top page margin) of the current subchart.

Subcharts

Insert a subchart break below the selected record.


Remove a subchart break below the selected record.


Define the conditions for page breaks on the open Chart Document.

Box

The following options pertain to the selected box(es).


Change shape of box.


Change the fill color.


Turn box shadow effect on/off.


Change the border thickness and style.


Change the border color.

Text

The following options pertain to the text within the selected cell(s).


Chant the font style.


Change the font size.


Change the text color.


Change the cell color.


Bold text.


Italicize text.


Underline text.


Configure the field label display settings.

  • Value - Display only the field value (i.e., "John Smith)

  • Label : Value - Display the field label, and then the field value, separated by a colon (i.e., "Name: John Smith")

  • Label - Display only the field label (i.e., "Name")

Alignment

The following options pertain to the text within the selected cell(s).


Align text to the top.


Align text to the middle.


Align text to the bottom.


Make all cell content visible by displaying it on multiple lines.


Align text to the left.


Align text to the center.


Align text to the right.


Align text to both the right and left margins.

Use this option when displaying a field label and a field value within the same cell.

Line

The following options pertain to the selected connecting line(s).


Change the color of the line.


Change the thickness and style of the line.

Grouping

The following options pertain to the selected boxes.

Note

Note: Select multiple boxes at a time by holding down the SHIFT key, and then clicking on the desired boxes using the Select tool.


Group two managers of the same department together. Each of the manager's direct are moved under this grouped container.


Group employees.


Group employees under a customizable header.


Ungroup previously grouped managers or employees.

Arrange

The following options pertain to the selected object on the current subchart.


Pin object on the page. Pinned objects are automatically repositioned when the page is resized.


Set order that objects (like text boxes and images) appear on the OrgChart.

Insert

The following options pertain to the current subchart.

Note

Note: If you would like to insert any of the options onto every page of your chart, you can do so by editing the Master Page. Reference the Master Editor article for more information.


Insert a text box.


Insert an AutoText element, such as page numbers or subchart name.


Insert an image.


Insert a table.

Right-click on the table to edit its properties in the Box Layout Editor.


Insert a legend.

Right-click on the table to edit its properties in the Box Layout Editor.


Insert a pie chart. Reference the Pie Chart topic article for more information.
