OrgChart Now Help Guide

Views

Overview

Views are templates (designed by Administrators and Read/Write users in View Manager) that are applied to the Master Chart.

Views contain the Box Styles and conditional Rules that drive the presentation of chart data.

Users can toggle between the Views that are available to them in Viewer, Workbench, View Manager, and Planning modes by using the View dropdown menu.

Accessing the Views Menu

  1. Click on the View dropdown menu while in Viewer, Workbench, View Manager, or Planning mode.

  2. The View menu is displayed.


Changing Views

  1. Click on the View dropdown menu, and then select the View you would like to apply to the open Master Chart.

    Note

    The Views a user is allowed to access depend on their permissions. Reference the Account Settings: Access Group article for more information.

    Note

    Administrators can add or remove Views that are available for access in the View menu in the Chart Settings: Presentation panel.

    Views that have not been promoted to the View menu are still accessible for Administrators to edit in View Manager or apply in Workbench.

View Examples

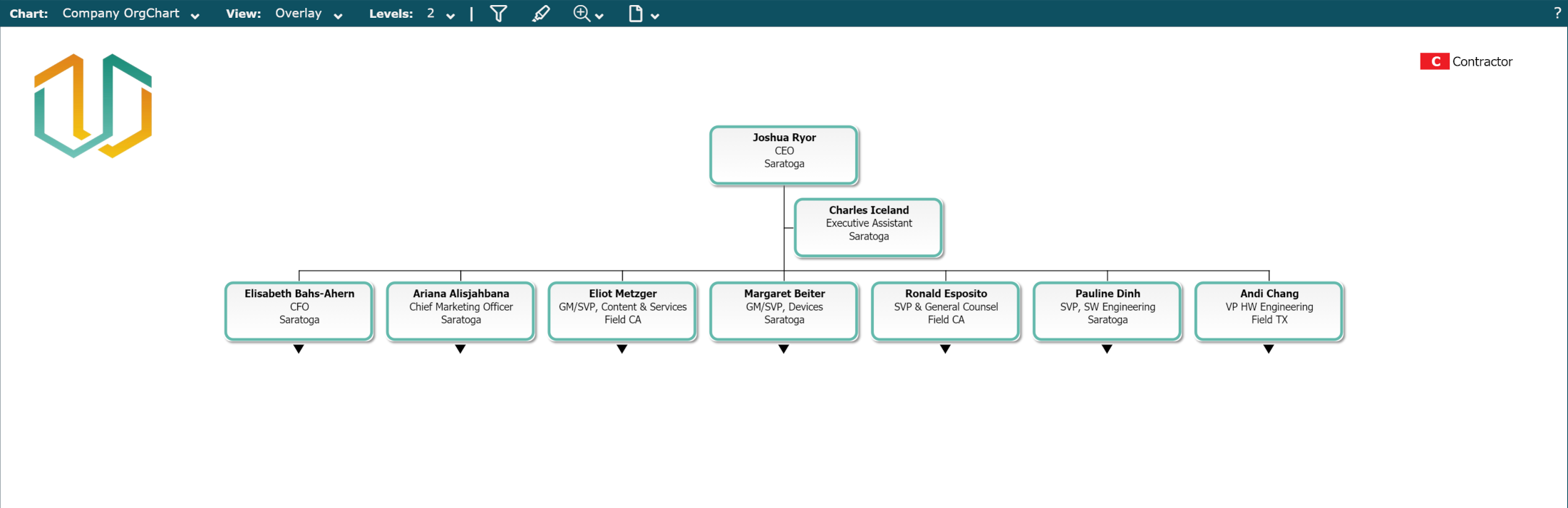

Overlay View

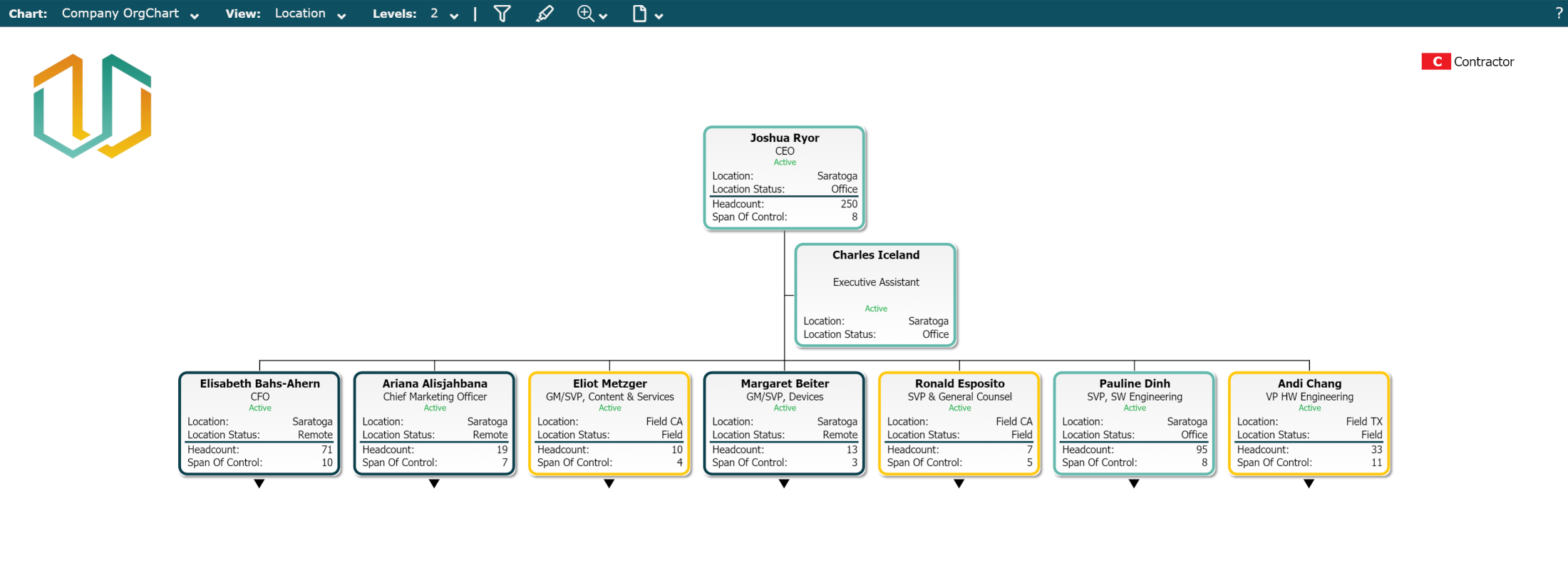

Location View

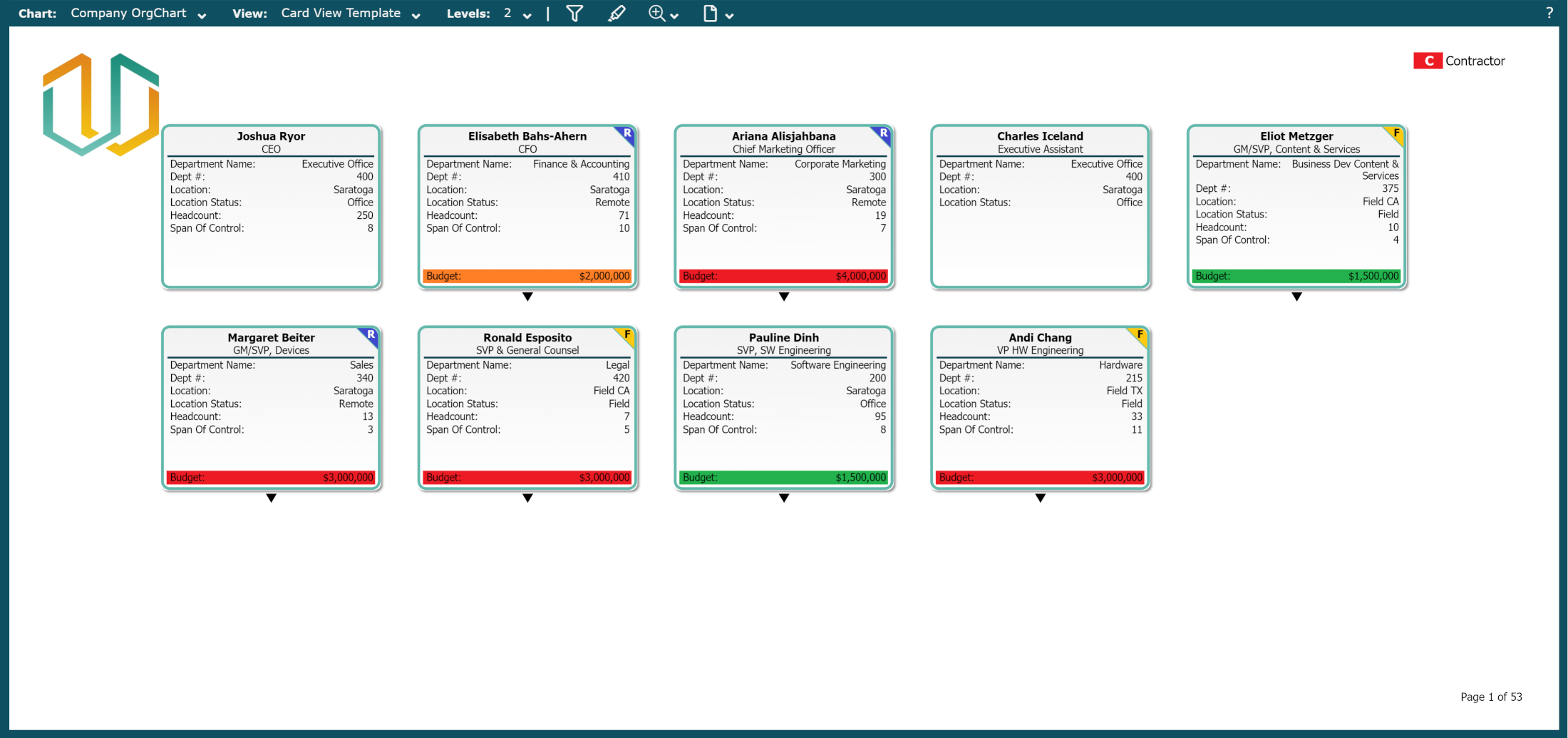

Card View

Card View allows users to better view employee records when Box Styles containing a large amount of data are applied to the current View.

To enable Card View:

  1. Click on the View dropdown menu.

  2. Select the Card View option.

OrgChart Enabled


Card View Enabled
